Cowens fence booms – 250mm, 480mm, 700mm fence booms in PVC or PU. Ideal for containing oil spills in sheltered waters. Immediate deployment; no tools or inflators needed; can be joined easily. Silt screens for civil works in or near watercourses. Air filled booms for choppy waters. Shoreline booms for intertidal deployment. Solid pod booms for heavy duty permanent protection.

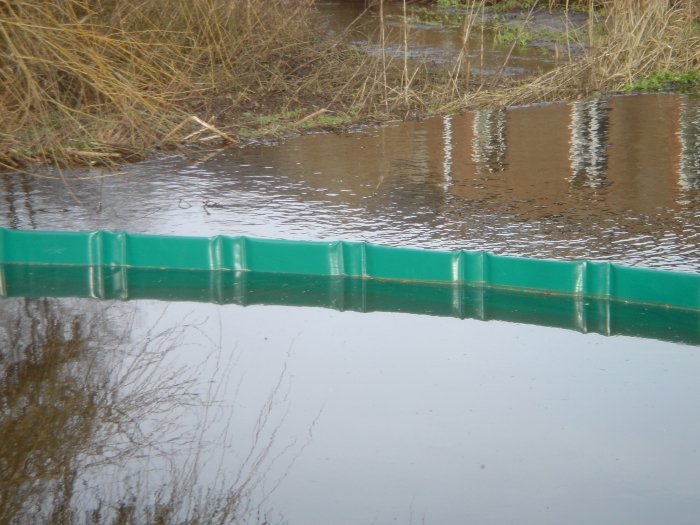

Ideal for emergency response use in canals, streams, rivers and lagoons. The light weight of the River Phoenix containment boom allows for easy transportation, deployment and recovery. The boom length is simply extended with an innovative boom to boom connecting system that requires no tools.

This lightweight, highly portable boom is the obvious choice for holding on site at all times along with Oilsorb-Ultra absorbents. The first-aid for oil spills, they could well prevent an accident becoming a disaster. Extremely popular with the Water Authorities and Environment Agencies, the River Phoenix 250 protects inland and industrial waterways reliably and cost effectively.

EQUIPMENT

Segmented boom manufactured from high frequency welded 750 g/m2 PVC coated nylon fabric giving durable and excellent high wear and abrasion resistance. Foam buoyancy by sealed closed cell foam panels giving immediate readiness for use. Ballast is provided by galvanised chain. Joining booms is achieved using plastic cleats, which require no tools or detached fixings and cannot corrode. This produces a very stable, self righting boom which zigzags neatly for storing.

TECHNICAL SPECIFICATION

OPTIONS

  • Made to any length.
  • Colour options available on request.
  • Tow bridles.
  • Storage boxes
  • Storage and deployment racking trailer
Overall 250 480
Freeboard (air) 100 mm 120 mm
Draught 150 mm 360 mm
Standard Sect Length 5, 10 m 10, 20 m
Weight 1 kg/metre 1.6 kg/metre
Ballast Enclosed Galvanised Chain
Colour Green Green
Boom Connection Plastic Cleats

A high specification and effective pollution control barrier boom that is ideal for emergency response or long term deployment in rivers, estuaries, harbours and lagoons.

Requiring no inflation, the Harbour Phoenix provides immediate protection and maximum durability. A solid boom manufactured in slim profile section making it ideal for easy storage in zigzag form.

Custom-made road trailers are available for complete emergency protection systems, which need to be permanently ‘at the ready’.

EQUIPMENT

A segmented solid buoyancy boom manufactured in hard wearing 1080 g/m2 PU alloy coated fabric giving durable abrasion resistance. Buoyancy is provided by enclosed cross link closed cell foam which means that the boom will remain buoyant even if the coating is punctured. An enclosed galvanised chain provides ballast. Stiffening rods ensure the boom lies vertically in the water, and recovers quickly if subjected to gusts in exposed conditions. A range of end connectors are available for joining booms together.

TECHNICAL SPECIFICATION

Overall 480 750
Freeboard 150 mm 250 mm
Draught 330 mm 500 mm
Standard Sect Length 5, 10, 15, 20, 25 metre
Weight 3.3 kg/metre 5 kg/metre
Ballast Enclosed Galvanised Chain
Colour Marine safety orange

OPTIONS

  • A variety of standard boom connectors may be fitted according to customer specification ensuring that the Harbour Phoenix boom may be used with existing equipment.
  • Heavy duty 1400 gsm PU version
  • Anchor points
  • Three point floating connector
  • Storage boxes and containers
  • Storage and deployment racking trailer
Harbour Phoenix
